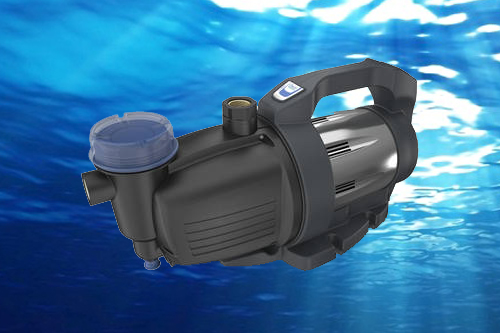

ProMax Garden 6000/5

12,500,000

Flow rate Q max: 5.8m3/h
Head height (max.): 58m

Product characteristics

Saves installation effort: Integrated pre-filter for effective removal of sand and particles
Easy to open: Place a standard screwdriver in the slots and turn the filter cover
Robust drain screw: Chrome-plated metal screw for easy opening with tools, without danger of breaking, even if the thread has “seized”
High-quality & efficient: Stainless steel motor cladding for improved heat dissipation
Solid thread: Brass inserts for female threaded elements enable easy connection to off-the-shelf threaded material
Easy & variable fixation: 4x slots for threaded fittings in the base allow variable mounting, e.g. on an existing installation carriage
Prevention of noise & vibration: Rubber feet integrated in the base of the housing
Quiet operation: 5-stage impeller technology in combination with a high-volume and flow-optimised hydraulic unit of fibre-glass reinforced plastic
Suitable for pressure switch: With a stored selection program, the pump changes to standby mode for operation with an external pressure switch at the touch of a button
Bright & clear: Blue and red LEDs on the rear handle section indicate the operating status in a manner that is easy to identify.
Safe: Flow control and electronic dry-run protection

Warranty: 1 year

Specifications

Item number: 43124
Flow rate Q max: 5800 (l/h)
Delivery head H max: 58m
Pressure max: 5.8 bar
Power consumption: 1300W – 1.7 HP
Rated voltage: 230 V / 50 Hz
Self-priming suction head max: 8m
Pump mechanism: 5-tier
Automatic function: No
Connection sunctions-side: 1″
Connection pressure-side: 1″
Sprinkler connection capacity / max. hose length per sprinkler: 5x / 25 m, 5x / 50 m
Power cable length: 1.50 m
Protection class: IP X4
Net weight: 15.20 kg
Dimensions (L x W x H): 591 x 234 x 304
Item number: 43124


PRODUCT VIDEO



DOWNLOAD DOCUMENTS

Brochure: ProMax Garden 6000/5
