ACC2 DECODER Controllers

Number of Stations: 75 to 225
Type: Modular Decoder
SKU: A2CD Category: Tags: ,

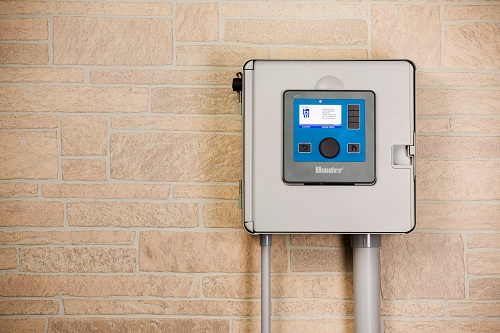

Hunter’s next-generation ACC2 Decoder controller provides powerful irrigation management and monitoring capabilities for complex commercial projects.

The ACC2 Decoder controller is specifically designed to manage Hunter ICD decoders on large projects, and is expandable to 225 stations. The controller offers extreme flexibility, with 32 independent programs, 10 start times, and a variety of overlapping, stacking, and management configurations.

The powerful Flow Manager takes full advantage of sophisticated irrigation designs, watering as much as possible in the shortest possible amount of time —up to 30 simultaneous solenoid (maximum 20 per output module) at user-specified flow rates.

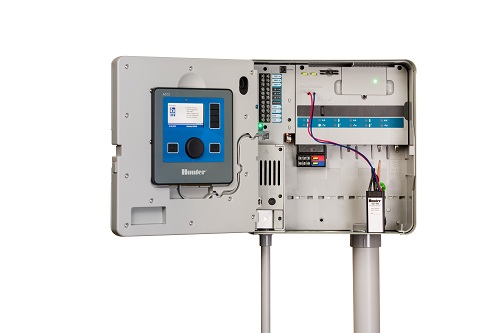

The all-new design features a full-color LCD display in a reversible facepack that operates all functions in either position, making field service a breeze. Finally, advanced features such as Flow Monitoring deliver fast diagnostics of abnormal flow conditions and accurate histories for up to six flow zones.

For the ultimate reliability in large-scale commercial irrigation management, the ACC2 Decoder controller is second to none.

Warranty period: 2 years

Model


Operating Specifications

  • Transformer input: 120/230 VAC, 50/60 Hz
  • Max AC current draw: 120 VAC, 2 A/230 VAC, 1 A
  • Transformer output: 24 VAC, 4 A
  • P/MV outputs (24 VAC): Up to 6; 3 dedicated outputs with optional assignment to decoders.
  • Simultaneous program operation: Up to 30 (20 per output module)
  • Sensor inputs: 3 Clik, 1 Solar Sync, and 6 Flow sensors

Download Documents

ACC2 Brochure: Brochure-ACC2 Decoder-Controller

ACC2 Installation: Installation-ACC2 Decoder-Controller
