I-Core

Type: Modular
Number of Stations: 6 – 48

I-Core

The Next Generation of Commercial Control

The I-Core is Hunter’s controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed SmartPort®, six language capability, and a bold, backlit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL two-wire module can even expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservation-focused Solar-Sync, I-Core’s possibilities are all but limitless.

Warranty period: 5 years

Model

I-Core-Model

Operating Specifications

Transformer input: 120/240 VAC, 50/60 Hz

Transformer output (24 VAC): 1.4 A

Station output (24 VAC): 0.56 A

Simultaneous station operation: 5 valves

Pump/Master Valve (24 VAC): 0.28 A

Sensor inputs: Plastic: 2; Metal: 3

Operating temperature: 0º F to 140º F

Download Documents

Brochure I-Core: Brochure-I-Core-Controller

Catalog I-Core: Cutsheet-Catalog-I-Core-Controller

Installation I-Core: Installation-I-Core-Controller

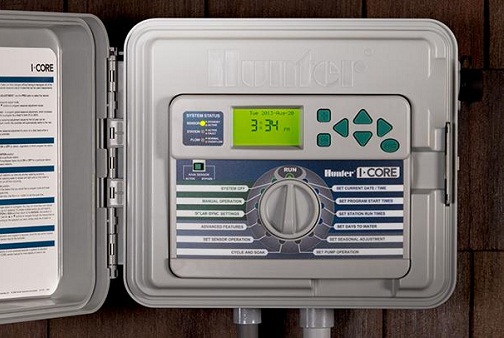

Hình ảnh bộ điều khiển I-Core
