X2 Controller

Number of Stations: 4, 6, 8, or 14
Types: Block, Wifi

X2 CONTROLLER

The X2 controller continues the legacy set by the popular X-Core® with a similar set of reliable and highly efficient capabilities, but brings irrigation management into the next generation by providing the option to add Wi-Fi for remote management and advanced water-saving features using Hunter’s industry-leading Hydrawise® software.

With X2, you can keep the familiar dial-based programming style offered by X-Core. If you upgrade X2 with WAND, programming is familiar, fast, and easy thanks to a helpful setup wizard using a smartphone or desktop device. Hydrawise maximizes water savings by automatically adjusting irrigation schedules based on local weather measurements sourced from the internet.

X2 ensures healthy, green landscapes to make site management more convenient and profitable in routine installations. You can quickly set irrigation schedules and manage an unlimited number of controllers with real-time controller status updates.

X2 CONTROLLER BENEFITS

  • Number of stations: 4, 6, 8, or 14 (fixed models)
  • Wi-Fi capable controller automatically managed by Hydrawise® software
  • Backlit display provides optimal visibility in any light
  • 3 flexible programs with 4 start times each and up to 6-hour run times
  • QuickCheck™ provides simple diagnostics of faulty field wiring
  • Hide Programs option shows 1 program and 1 start time for simplification
  • Suspend irrigation up to 99 days during the off-season
  • Short-circuit protection detects wiring faults and skips the station without system damage
  • Easy Retrieve® memory backs up the full irrigation schedule
  • Delay Between Stations for slow-closing valves or pump recharge
  • Cycle and Soak prevents water waste and runoff in areas with elevation changes or tight soils
  • Seasonal adjustment for quicker schedule adjustments without changing run times

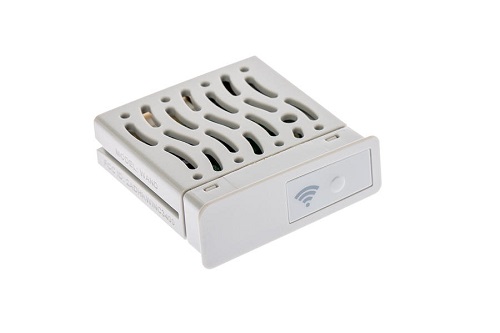

WAND WI-FI MODULE BENEFITS

  • Simple plug-in Wi-Fi option for any X2 controller model for online irrigation management
  • Provides online irrigation management with controller status and faulty wiring alerts
  • Standard programming allows for 3 independent programs with 6 start times per program and 24-hour maximum run times
  • Copy and paste Hydrawise scheduling to any X2 controller for full schedule set up in seconds
  • Use your smartphone as a manual remote when Wi-Fi is unavailable or the controller is hard to access
  • Increase water savings by adding Hydrawise to your X2 controller
  • Bluetooth Wi-Fi setup, Wi-Fi direct, or WPS push-button connection

Warranty period: 2 years (Controller and Module)

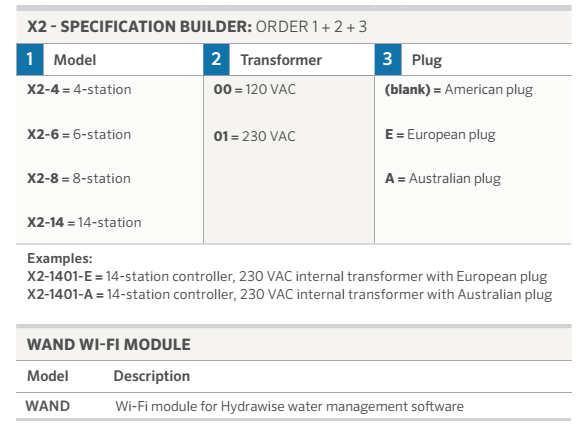

MODEL

OPERATING SPECIFICATIONS

Transformer input: 120 VAC
Transformer output (24 VAC): 1 A
Station output (24 VAC): 0.56 A
P/MV output (24 VAC): 0.28 A
Total maximum output: 0.84 A
Sensor inputs: 1
Approvals (controller): Plastic IP44, UL, cUL, FCC, CE, RCM
Approvals (module): Wi-Fi b/g/n, Bluetooth 5.0, UL, cUL, FCC, CE, RCM

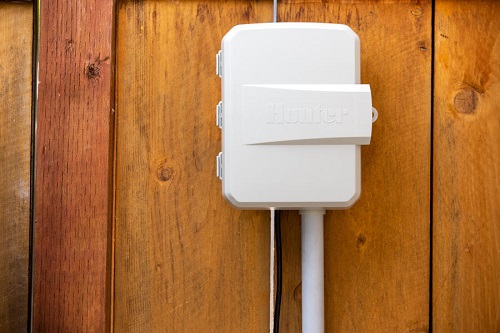

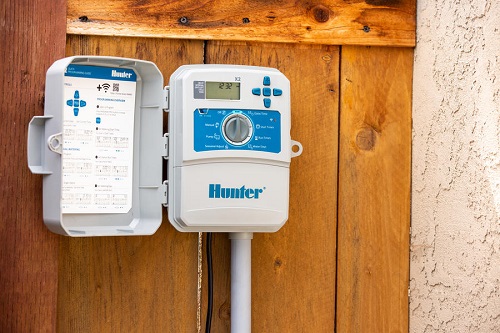

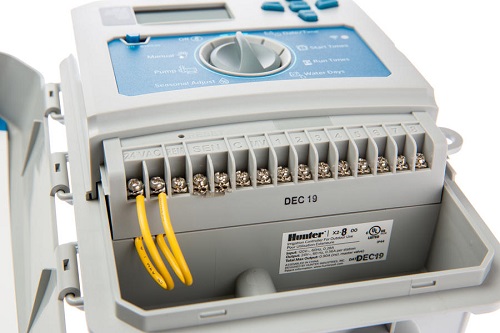

CONTROLLER PHOTOS

DOWNLOAD DOCUMENTS

Brochure X2 : Brochure X2 Controller
Catalog X2: Catalog X2 Controller
Installation X2: Install X2 Controller
Manual X2: User Guide X2 Controller
Timing instructions X2: Timing X2 Controller
Catalog module wifi WAND: Catalog WAND module
Instructions module wifi WAND: User guide WAND module
