DUAL-48M

Type: Decoder
Number of Stations: Up to 48

SKU: DUAL-48M Category: Tags: , ,

DUAL-48M

Use Dual to Convert The I-Core to A Cutting Edge Two-Wire Controller

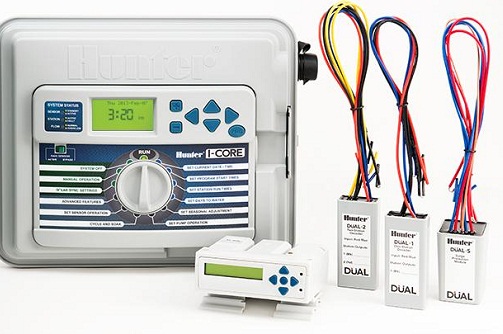

DUAL is Hunter’s innovative two-wire plug-in for the I-Core controller. Designed to bring the convenience and efficiency of two-wire technology to all, the DUAL system can operate up to 48 zones via a single pair of wires, at distances up to 7,500 feet (2.3 km). The 48 zones can all be installed on a single path, or divided over multiple paths to take advantage of pipe trenches. Because it only requires two wires, DUAL offers unmatchable savings in labor, wire, and money. Since it’s I-Core compatible, system operators still receive advanced features and benefits like flow monitoring, quick system overview access, a factory-installed SmartPort®, six language capability, and a bold, graphic display. Dual decoders come in one and two-station versions. Aptly named Dual-1 and Dual-2, the decoder choices ensure any I-Core Dual system is customizable to the needs of any installation.

Operating Specifications

Decoder station sizes available: 1, 2
Dual-S external surge protectors (add in-line every 12th decoder or 1000 ft/300 m, minimum)
Max. distance to decoder: 14 AWG wire path; 5,000 ft.; 12 AWG wire path; 7,500 ft.
Max recommended distance, decoder to solenoid: 100 ft.

Warranty period: 2 years

Model



dual_decoder_module



Dual 1&2

DUAL 48M DUAL S; DUAL 1; DUAL 2

Operating Specification

Decoder station sizes available: 1, 2

Dual-S external surge protectors (add in-line every 12th decoder or 1000 ft/300 m, minimum)

Max. distance to decoder: 14 AWG wire path; 5,000 ft.; 12 AWG wire path; 7,500 ft.

Max recommended distance, decoder to solenoid: 100 ft.

Download Documents

DUAL Brochure: Brochure-Dual-Controller

DUAL Catalog: Catalog-Dual-Controller

DUAL Installation: Installation-Dual-Controller
