NODE

Type: Battery Operated, Fixed
Number of Stations: 1, 2, 4, 6

SKU: NODE Category: Tags: ,

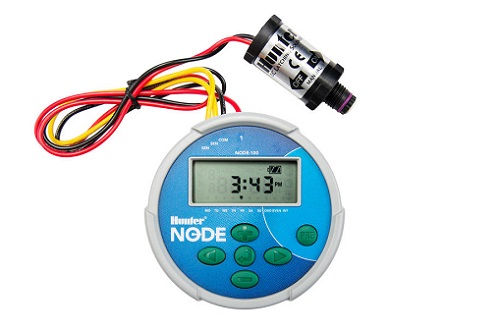

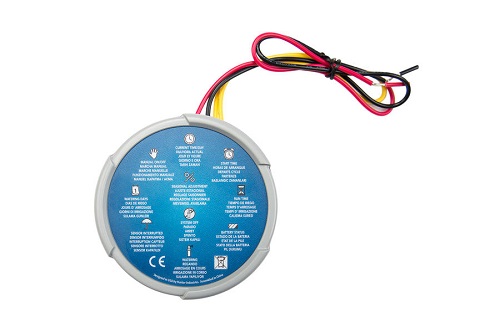

NODE

Reliable Battery-Powered Control Without the Need of an Electrical Connection

For isolated sites, power-restricted areas, the Hunter Node is the smart, reliable solution. The Node mounts to a valve’s solenoid quickly and easily, and without screws, drills or additional wires. The unit’s solid construction and waterproof exterior ensure it can handle the harsh environment of a valve box. The Node is powered by one or two 9V batteries and provides standard or extended power throughout the season. Along with exceptional reliability, the Node features an easy-to-program LCD screen, the ability to control a Master Valve, and uses standard Hunter controller programming with 3 programs and 4 start times per program. The array of programming options and rugged reliability make the Node a compact, but powerful irrigation controller with the flexibility of battery power..

Operating Specifications

Operates DC latching solenoids only (P/N 458200)
Pump/master valve
Sensor inputs: 1
Operating temperature: 0º F to 140º F
Power source: 9-volt battery (up to two) or Solar Panel

Warranty period: 2 years

Model

Operating Specifications

Pump/master valve

Sensor inputs: 1

Operating temperature: 0º F to 140º F

Power source: 9-volt battery (up to two) or Solar Panel



Download Documents

NODE Brochure: NODE-Brochure

NODE Catalog: Cutsheet-NODE

NODE Manual: NODE-Manual

NODE Installation: NODE-Installation
