RAIN-CLIK

Sensor: Rain
Switch rating: 24 VAC, 3 A

SKU: RAIN-CLIK Category: Tag:

Rain-Clik

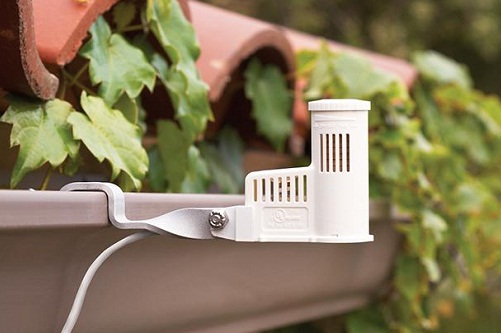

Most rain-sensing devices work by accumulating a set amount of rainfall before a switch is activated that interrupts the circuit from the controller and shuts off the system. In that “accumulation time”, the system will unnecessarily continue to water. This can look especially bad for conservation-conscious municipalities, businesses, and residences. With built-in Quick Response technology, the Hunter Rain-Clik and Wireless Rain-Clik can command a controller to shut off right when it starts to rain. The Rain-Clik can be mounted on an eave or any flat vertical surface like a wall or fence. A gutter mount is also available that allows for easy installation of the Rain-Clik on the edge of a gutter.

Warranty period: 5 years

MODEL

WR-CLIK-TR
WR-CLIK-TR
RAIN-CLIK
RAIN-CLIK
WR-CLIK-R
WR-CLIK-R
SGM
SGM
CLIK-DELAY
CLIK-DELAY
RFC (Rain/Freeze Clik)
RFC (Rain/Freeze Clik)

OPERATING SPECIFICATIONS

Operating Specifications

Wiring: “normally open” or “normally closed”

Time to turn off irrigation system: 2 to 5 minutes approx. for Quick Response

Time to reset Quick Response: 4 hours approx. under dry, sunny conditions

Time to reset when fully wet: 3 days approx. under dry, sunny conditions

UL listed, CUL (CSA), CE

Switch rating: 24 VAC, 3 A

Freeze sensor shuts system off when temperatures fall below 37˚ F (Rain/Freeze-Clik model)

System operating frequency: 433 MHz

UL listed, FCC approved, suitable for use in Australia, CUL (CSA), CE

Communication range up to 243m. line of sight (Wireless model)

Receiver input power: 24 VAC (from controller)

DOCUMENTS

Documents

Rain-Clik Brochure: Brochure-RAIN-CLIK

Rain-Clik Manual: Manuals-Rain-Clik

Rain-Clik Installation: Installation-Rain-Clik
