G884

Radius: 14.9 to 28.3m
Discharge Rate: 3.28 to 13.24 m3/hr

SKU: G884 Category: Tag:

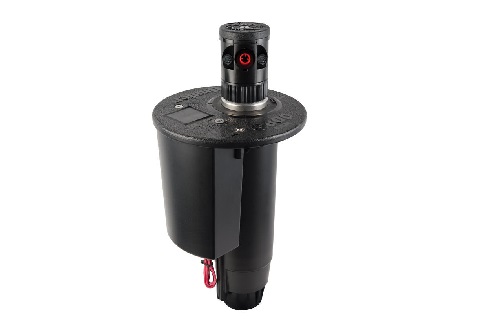

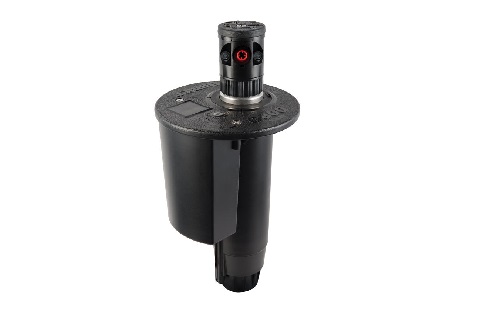

G884

The perfect combination of power, performance and serviceability.

G800 Series rotors are reliable and efficient mid-range performers that provide unsurpassed distribution with a wide range of flow and radius capabilities. They are available in an array of TTS and DIH configurations. Patented TTS technology allows for every serviceable element of the rotor to be accessed through the top. Mechanical and electrical, big and small, you can get to every component without disturbing the playing surface. That means there’s no more digging, and no more unsightly scars. Contrary to competitors, all Hunter golf rotors are manufactured in the United States of America.

Operating specifications
Full circle. Radius: 14.9 to 28.3m
Discharge Rate: 3.28 to 13.24 m3/hr
Pressure range: 3.4 to 6.9 bars; 340 to 690 kPa
Precipitation rates: 17 to 19 mm/hr approx
All TTS rotors are pressure rated at 10 bars; 1,000k Pa

Warranty period : 3 years

Model

G884C

g884e

Specifications

Full circle. Radius: 14.9 to 28.3m

Discharge Rate: 3.28 to 13.24 m3/hr

Pressure range: 3.4 to 6.9 bars; 340 to 690 kPa

Precipitation rates: 17 to 19 mm/hr approx

All TTS rotors are pressure rated at 10 bars; 1,000k Pa

Documents

Catalog Rotor G800: Cutsheet-G800 series

Installation Golf Rotor: Golf-Rotors-Install
