ACC

Type: Modular
Number of Stations:12 to 42

SKU: ACC Category: Tags: ,

ACC

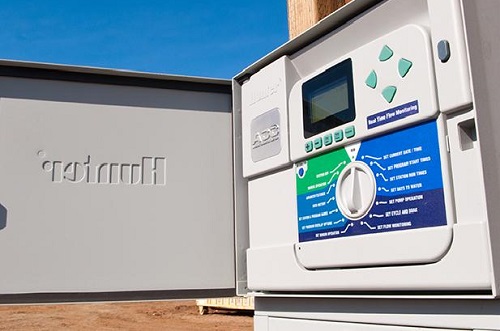

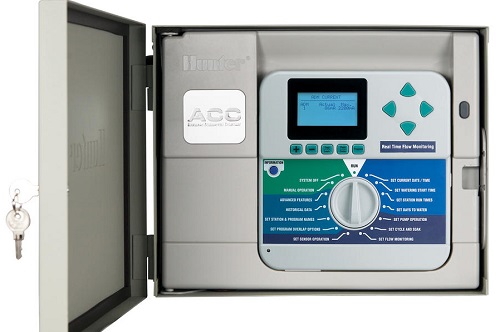

Hunter’s Flagship Controller Can Stand Up to Any Commercial Job

The ACC brings the versatile features of modularity to the most advanced large-scale commercial controller in the Hunter line. The adaptable design not only allows configuration to the number of stations you desire, it also makes it easy to upgrade to two-way communication with a Hunter Central Control System. What truly sets the ACC apart is its sheer power. Intelligent overlap settings and its powerful transformer allow ACC to run up to 6 programs simultaneously, packing the most watering into the shortest water window.  Real time flow monitoring allows the controller to dynamically respond to overflow conditions by station, and track system water use. The ACC boasts a total of 6 independent and 4 custom programs and the ability to assist the water manager in conforming to “watering windows.” Plus, the ACC’s large backlit LCD display offers the user a convenient means to personalize on-screen station and program names. ACC also has built-in support for the water-saving Solar Sync sensor.

Operating Specifications

Transformer input: 120/240 VAC, 50/60 Hz
Max AC Current Draw: 120 VAC, 2 Amps; 230 VAC, 1 Amp
Transformer output (24 VAC): 4.0 A
Dual voltage transformer (120/240 VAC)
Station output (24 VAC): 0.56 A
P/MV output (24 VAC): 0.32 A
Pump/master valve: 2, normally closed
Operating temperature: 0º F to 140º

Warranty period: 5 years

Model

acc-model

acc-model-acm

Operating Specifications

Transformer input: 120/240 VAC, 50/60 Hz

Max AC Current Draw: 120 VAC, 2 Amps; 230 VAC, 1 Amp

Transformer output (24 VAC): 4.0 A

Dual voltage transformer (120/240 VAC)

Station output (24 VAC): 0.56 A

P/MV output (24 VAC): 0.32 A

Pump/master valve: 2, normally closed

Operating temperature: 0º F to 140º

Download Documents

ACC Brochure: Brochure-ACC

ACC Catalog: Cutsheet-ACC

ACC Manual: Manual-ACC

ACC Installation: ACC-installation
