G85B

Radius: 13.1 to 27.7 m
Flow Rate: 1.86 to 13.06 m3/hr

SKU: G85B Categories: , Tags: , ,

G85B

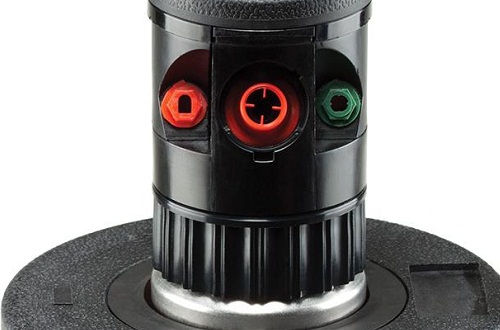

Boasting the highest torque output of any golf rotor on the market, the G85B’s patented gear drive will push through anything that gets in its way. Try it yourself and see. With just one rotation of the turret by hand, you can clearly feel this rotor’s formidable durability. With such a powerful core, an array of efficient nozzles, and true full circle and part circle capabilities, the new G885 is the golf rotor you can always count on.

With a Block rotor design, the G85B is a cost competitive and highly reliable performer. It is the perfect choice for new construction, retrofit, and system upgrade situations that call for a Block rotor configuration.

Operating specifications

Full/Part circle 60° to 360°. Radius: 13.1 to 27.7 m
Flow Rate: 1.86 to 13.06 m3/h
Operating pressure range: 3.4 to 6.9 bar; 344 to 689 kPa
Precipitation rates: 15 mm/hr approx
All B Series rotors are pressure rated at 10 bars; 1,000kPa

Warranty period: 3 years

Model

G85B

Operating Specifications

Radius: 13.1 to 27.7 m

Full/Part circle 60° to 360°

Flow Rate: 1.86 to 13.06 m3/hr

Operating pressure range: 3.4 to 6.9 bar; 344 to 689 kPa

Precipitation rates: 15 mm/hr approx

All B Series rotors are pressure rated at 10 bars; 1,000kPa

Download Documents

G85B Catalog: Catalog-G85B-Rotor

G85B Installation: Installation-G85B-Rotor
