G80B

Radius: 20.4 to 26.8 m
Flow Rate: 5.11 to 13.15 m3/hr

SKU: G80B Categories: , Tags: , ,

G80B

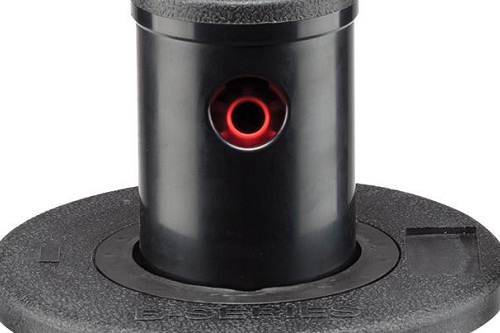

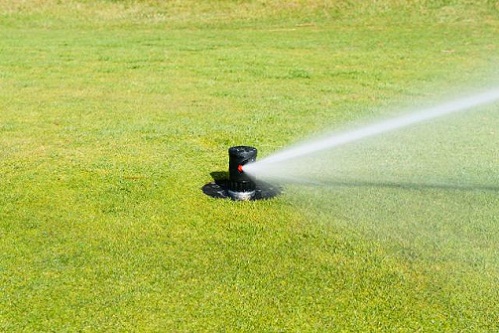

Easy to adjust and maintain, Hunter’s G80B golf and large turf rotor is also the ideal choice for the customer on a budget. The B Series rotors provide all the standard features you want for mid-distance coverage including a time-tested gear drive, convenient through-the-top servicing, and a sturdy, impact-resistant flanged body. Plus Hunter’s PressurePort™ nozzling system reduces velocity and pressure to the secondary nozzles while increasing droplet size. The result is they deliver uniform distribution every time.

Operating specifications

Full circle. Radius: 20.4 to 26.8 m
Flow Rate: 5.11 to 13.15 m3/hr
Operating pressure range: 4.5 to 6.9 bar; 450 to 689 kPa
Precipitation rates: 15 mm/hr approx
All B Series rotors are pressure rated at 10 bars; 1,000kPa

Warranty period: 3 years

Model

G80B

Operating Specifications

Full circle. Radius: 20.4 to 26.8 m
Flow Rate: 5.11 to 13.15 m3/hr
Operating pressure range: 4.5 to 6.9 bar; 450 to 689 kPa
Precipitation rates: 15 mm/hr approx
All B Series rotors are pressure rated at 10 bars; 1,000kPa

Download Documents

G80B Catalog: Catalog-G80B-Rotor

G80B Installation: Installation-G80B-Rotor
