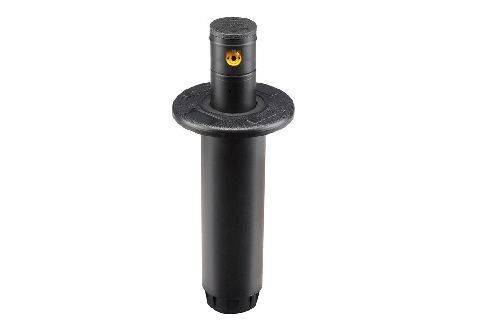

G35B

Radius: 5.5 to 15.2 m
Flow Rate: 0.43 to 2.91 m3/hr

SKU: G35B Categories: , Tags: ,

G35B

Easy to adjust and maintain, Hunter’s G35B golf and large turf rotor is also the ideal choice for the customer on a budget. The B Series rotors provide all the standard features you want for short and mid-distance coverage including a time-tested gear drive, convenient through-the-top servicing, and a sturdy, impact-resistant flanged body.

Operating specifications

Full/Part circle 50° to 360°. Radius: 5.5 to 15.2 m
Flow Rate: 0.43 to 2.91 m3/hr
Operating pressure range: 2.8 to 4.5 bar; 275 to 450 kPa
Precipitation rates: 14 mm/hr approx
All B Series rotors are pressure rated at 10 bars; 1,000kPa

Warranty period: 3 years

Model

g35b-model

Operating Specifications

Radius: 5.5 to 15.2 m

Full/Part circle 50° to 360°.

Flow Rate: 0.43 to 2.91 m3/hr

Operating pressure range: 2.8 to 4.5 bar; 275 to 450 kPa

Precipitation rates: 14 mm/hr approx

All B Series rotors are pressure rated at 10 bars; 1,000kPa

Download Documents

G35B Catalog: Cutsheet-G35B

G35B Installation: Golf-Rotors-Install
